Distribution Transformers

We are a leading Exporter of distribution transformer, distribution & power transformers, single phase power transformers, 1250 kva 3 phase outdoor power distribution transformer and oltc distribution transformer from Ludhiana, India.

Distribution Transformer

REQUEST CALLBACK

Distribution Transformer
Approx. Rs 1 Lakh / Piece
Get Best Quote

Built using superior quality components, our 1250 KVA Transformers spell only high performance in testing times. Because of their sturdy built, high quality components and its performance, these transformers are highly in demand in national and international markets.



Distribution Transformers is also known as Auto Transformers.



Distribution & Power Transformer:

  • Upto 150 kVA Single Phase both 11 & 33 kV class
  • Upto 40 MVA, 66 kV class
  • Upto 20 MVA OLTC 33 kV class



Applicable Standards:

  • IS, IEC, ANSI, JIS, BS, DIN



Transformer Options:

  • Cooling tubes, radiators and corrugated tanks
  • Pole mounted or ground mounted
  • Free breathing or hermetically sealed
  • CSP and Non CSP
  • Winding-copper/aluminum (foil/rectangular wire/round wire)
  • Fittings and accessories, cable
  • Terminations: As required



Standards:

  • Tested as per IS: 2026, BS - 171, IEC - 76 & IEC - 726



Vector Group:

  • Transformers will be connected as per vector group reference Dyn 11



Terminal Arrangement:

  • H. V - bare bushings or cable box
  • L. V. - bare bushings
  • cable box
  • Disconnecting chambers can also be provided on both HV and LV cable boxes



Temperature Rise:

  • Transformers are designed for a maximum temperature rise 40/50ºC of oil and winding
  • Lower temperature rise can be offered on request



Standard Fittings:

  • Rating and diagram plate
  • Earthing terminals - 2 nos
  • Lifting lugs
  • Oil level indicator (plain)
  • Drain-cum bottom filter valve with plug
  • Oil filling hole with plug on conservator
  • Oil conservator with drain plug
  • Air release plug
  • Silica gel air breather
  • Bi-directional flat rollers
  • HV terminals-outdoor bushings
  • LV terminals-outdoor bushings
  • Radiators
  • Filter valve with plug
  • Thermometer pocket
  • Oil temperature indicator
  • Externally operated off circuit tap changing switch
  • Explosion vent
  • Sampling value (for 2000 Kva & above transformers only)



Accessories on Request:

  • LV and HV cable boxes
  • Winding temperature indicator (WTI)
  • Buchholz relay
  • Magnetic oil level gauge
  • Marshalling box
  • Disconnecting chamber
  • Oil temperature indicator with electrical contacts (OTI)
  • Pressure relief valve
Yes! I am Interested

Distribution & Power Transformers

REQUEST CALLBACK

Distribution & Power Transformers
Approx. Rs 1 Lakh / Unit
Get Best Quote
Product Details:
Minimum Order Quantity1 Unit
PhaseSingle Phase, Three Phase

Built using superior quality components, our 1250 KVA Transformers spell only high performance in testing times. Because of their sturdy built, high quality components and its performance, these transformers are highly in demand in national and international markets.



Distribution Transformers is also known as Auto Transformers.



Distribution & Power Transformer:

  • Upto 150 kVA Single Phase both 11 & 33 kV class
  • Upto 40 MVA, 66 kV class
  • Upto 20 MVA OLTC 33 kV class



Applicable Standards:

  • IS, IEC, ANSI, JIS, BS, DIN



Transformer Options:

  • Cooling tubes, radiators and corrugated tanks
  • Pole mounted or ground mounted
  • Free breathing or hermetically sealed
  • CSP and Non CSP
  • Winding-copper/aluminum (foil/rectangular wire/round wire)
  • Fittings and accessories, cable
  • Terminations: As required



Standards:

  • Tested as per IS: 2026, BS - 171, IEC - 76 & IEC - 726



Vector Group:

  • Transformers will be connected as per vector group reference Dyn 11



Terminal Arrangement:

  • H. V - bare bushings or cable box
  • L. V. - bare bushings
  • cable box
  • Disconnecting chambers can also be provided on both HV and LV cable boxes



Temperature Rise:

  • Transformers are designed for a maximum temperature rise 40/50ºC of oil and winding
  • Lower temperature rise can be offered on request



Standard Fittings:

  • Rating and diagram plate
  • Earthing terminals - 2 nos
  • Lifting lugs
  • Oil level indicator (plain)
  • Drain-cum bottom filter valve with plug
  • Oil filling hole with plug on conservator
  • Oil conservator with drain plug
  • Air release plug
  • Silica gel air breather
  • Bi-directional flat rollers
  • HV terminals-outdoor bushings
  • LV terminals-outdoor bushings
  • Radiators
  • Filter valve with plug
  • Thermometer pocket
  • Oil temperature indicator
  • Externally operated off circuit tap changing switch
  • Explosion vent
  • Sampling value (for 2000 Kva & above transformers only)



Accessories on Request:

  • LV and HV cable boxes
  • Winding temperature indicator (WTI)
  • Buchholz relay
  • Magnetic oil level gauge
  • Marshalling box
  • Disconnecting chamber
  • Oil temperature indicator with electrical contacts (OTI)
  • Pressure relief valve
  • Item Code: 1250KVA
  • Yes! I am Interested

    Single Phase Power Transformers

    REQUEST CALLBACK

    Single Phase Power Transformers
    Approx. Rs 1 Lakh / Unit
    Get Best Quote
    Product Details:
    Minimum Order Quantity1 Unit
    Cooling TypeDry Type/Air Cooled, Oil Cooled

    Three Phase/Single Phase Power Transformers

    Applicable Standards:
    IS, IEC, ANSI, JIS, BS, DIN, ETC.

    TRANSFORMER OPTIONS
    :

    • Cooling Tubes / Radiators / Corrugated
    • Tanks
    • Pole Mounted / Ground Mounted
    • Free Breathing / Hermetically Sealed
    • CSP / Non CSP
    • Winding-Copper/Aluminium (Foil /
    • Rectangular Wire / Round Wire)
    • Fittings and Accessories, Cable
    • Terminations etc.as required



    Standards:

    MUSKAAN’S transformers are designed and tested as per IS : 2026, BS - 171, IEC - 76 & IEC - 726.

    Vector Group:

    Transformers will be connected as per vector group reference Dyn11. Other vector groups can be offered as per specific requirements

    Terminal Arrangement:

    H. V. - Bare Bushings or Cable Box, L. V. - bare bushings or cable box. Disconnecting chambers can also be provided on both HV and LV Cable boxes.

    Temperature Rise

    MUSKAAN’S transformers are designed for a maximum temperature rise of 40 / 50 degree C of oil / winding. Lower temperature rise can be offered on request.

    Yes! I am Interested

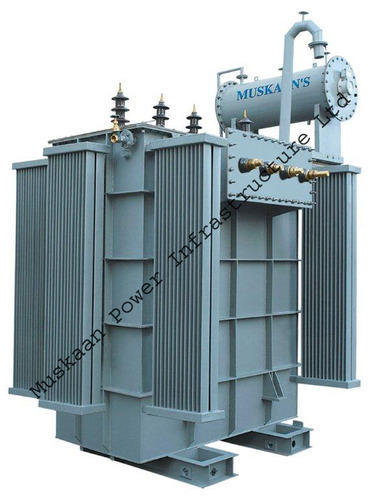

    1250 KVA 3 Phase Outdoor Power Distribution Transformer

    REQUEST CALLBACK

    1250 KVA 3 Phase Outdoor Power Distribution Transformer
    Approx. Rs 1 Lakh / Unit
    Get Best Quote

    Built using superior quality components, our 1250 KVA Transformers spell only high performance in testing times. Because of their sturdy built, high quality components and its performance, these transformers are highly in demand in national and international markets.



    Distribution Transformers is also known as Auto Transformers.



    Distribution & Power Transformer:

    • Upto 150 kVA Single Phase both 11 & 33 kV class
    • Upto 40 MVA, 66 kV class
    • Upto 20 MVA OLTC 33 kV class



    Applicable Standards:

    • IS, IEC, ANSI, JIS, BS, DIN



    Transformer Options:

    • Cooling tubes, radiators and corrugated tanks
    • Pole mounted or ground mounted
    • Free breathing or hermetically sealed
    • CSP and Non CSP
    • Winding-copper/aluminum (foil/rectangular wire/round wire)
    • Fittings and accessories, cable
    • Terminations: As required



    Standards:

    • Tested as per IS: 2026, BS - 171, IEC - 76 & IEC - 726



    Vector Group:

    • Transformers will be connected as per vector group reference Dyn 11



    Terminal Arrangement:

    • H. V - bare bushings or cable box
    • L. V. - bare bushings
    • cable box
    • Disconnecting chambers can also be provided on both HV and LV cable boxes



    Temperature Rise:

    • Transformers are designed for a maximum temperature rise 40/50ºC of oil and winding
    • Lower temperature rise can be offered on request



    Standard Fittings:

    • Rating and diagram plate
    • Earthing terminals - 2 nos
    • Lifting lugs
    • Oil level indicator (plain)
    • Drain-cum bottom filter valve with plug
    • Oil filling hole with plug on conservator
    • Oil conservator with drain plug
    • Air release plug
    • Silica gel air breather
    • Bi-directional flat rollers
    • HV terminals-outdoor bushings
    • LV terminals-outdoor bushings
    • Radiators
    • Filter valve with plug
    • Thermometer pocket
    • Oil temperature indicator
    • Externally operated off circuit tap changing switch
    • Explosion vent
    • Sampling value (for 2000 Kva & above transformers only)



    Accessories on Request:

    • LV and HV cable boxes
    • Winding temperature indicator (WTI)
    • Buchholz relay
    • Magnetic oil level gauge
    • Marshalling box
    • Disconnecting chamber
    • Oil temperature indicator with electrical contacts (OTI)
    • Pressure relief valve
  • Minimum Order Quantity: 1 Unit
  • Yes! I am Interested

    OLTC Distribution Transformer

    REQUEST CALLBACK

    OLTC Distribution Transformer
    Approx. Rs 1 Lakh / Unit
    Get Best Quote

    We are an organization known for making high-quality OLTC Distribution Transformer. Built by using superior quality raw materials and under the supervision of skilled and experienced staff, our outdoor high voltage transformers offer higher endurance and efficiency levels. Owing to our enriched experience in making transformers, our transformers are high in demand among various domestic and international markets.

    Features of Distribution & Power Transformer:

    • Upto 150 kva Single phase both 11 & 33 Kv class
    • Upto 40 MVA, 66 Kv class
    • Upto 20 MVA OLTC 33 Kv class



    Applicable Standards:

    • IS, IEC, ANSI, JIS, BS, DIN



    Transformer Options:

    • Cooling tubes, radiators, and corrugated tanks
    • Pole mounted or ground mounted
    • Free breathing or hermetically sealed
    • CSP and Non-CSP
    • Winding-copper/aluminum (foil/rectangular wire/ground wire)
    • Fittings and accessories, cable
    • Terminations: As required



    Standards:

    • Tested as per IS: 2026, BS - 171, IEC - 76 & IEC - 726



    Vector Group:



    • Transformers will be connected as per vector group reference Dyn 11



    Terminal Arrangement:

    • H. V - bar bushings or cable box
    • L. V. - bar bushings
    • Cable box
    • Disconnecting chambers can also be provided on both HV and LV cable boxes



    Temperature Rise:

    • Transformers are designed for a maximum temperature rise 40/50ºC of oil and winding
    • Lower temperature rise can be offered on request



    Standard Fittings:

    • Rating and diagram plate
    • Earthing terminals - 2 nos
    • Lifting lugs
    • Oil level indicator (plain)
    • Drain-cum bottom filter valve with plug
    • Oil filling hole with plug on conservator
    • Oil conservator with drain plug
    • Air release plug
    • Silica gel air breather
    • Bi-directional flat rollers
    • HV terminals-outdoor bushings
    • LV terminals-outdoor bushings
    • Radiators
    • Filter valve with plug
    • Thermometer pocket
    • Oil temperature indicator
    • Externally operated off circuit tap changing switch
    • Explosion vent
    • Sampling value (for 2000 Kva & above transformers only)



    Accessories on Request:

    • LV and HV cable boxes
    • Winding temperature indicator (WTI)
    • Buchholz relay
    • Magnetic oil level gauge
    • Marshalling box
    • Disconnecting chamber
    • Oil temperature indicator with electrical contacts (OTI)
    • Pressure relief valve
  • Minimum Order Quantity: 1 Unit
  • Yes! I am Interested
