Plating Anodizing Rectifiers

Rs 1 Lakh / Unit

Minimum Order Quantity: 1 Unit

It is like cutting the wheel by 50% and then moving the wheel i.e. wave form is cut as shown at full magnitude

Minimum Order Quantity 1 Unit



Roller Type Regulator Thyristor Control



No wave form distortion at any load. Wave form distortion.




  Get Best Quote

Product Specification

Minimum Order Quantity 1 Unit



Roller Type Regulator Thyristor Control



No wave form distortion at any load. Wave form distortion.



Product Description

Rs 1 Lakh / Piece

We are one of the renowned manufacturers and suppliers of a wide gamut of Plating and Anodizing Rectifiers. These rectifiers are used for DC Application and are manufactured using high-grade raw material in accordance with industry laid norms and guidelines. All the products offered by us are widely demanded in the market for its various excellent features such as high efficiency and anti-corrosive nature.

Brief Specifications:


  • Input voltage: 380 - 440 Volts, 3-phase 50 Hz. AC supply
  • Output voltage: Fixed Rated maximum DC voltage or variable from zero to maximum rated voltage
  • Output current: rated maximum DC current
  • Temperature Rise: Less then 35ºC above ambient at the top of the oil
  • Efficiency : 12V rect - 82%, 24V rect - 90%, 100V rect - 94%, 200V rect-96%
  • Ripple content: less than 5%
  • Insulation: ‘A’ class for oil cooled

Salient Features:


  • Electrolytic Prime grade copper strip to minimize power losses
  • Suitable for over loading conditions
  • Vertical rolling contact type voltage regulator
  • The carbon rollers move on both sides of the winding
  • Diodes: Silicon diodes are tested in-house, similar PIV batch
  • Lamination Core: CRGO lamination core are used for minimum power losses
  • Paints: epoxy paint which is resistant to acidic environment of plating process and provide insulation from rust
  • Meter: DC meters with AE/RISHAB make
  • Constant voltage controller (Cvc): CVC electronic attachment with rectifier equipment for maintaining output voltage or current
  • Servicing: As early as possible

Advantage of Roller Type Regulator as Compared to Thyristor Control:


  • Electrolytic Prime grade copper strip to minimize power losses
  • Suitable for over loading conditions
  • Vertical rolling contact type voltage regulator
  • The carbon rollers move on both sides of the winding
  • Diodes: Silicon diodes are tested in-house, similar PIV batch
  • Lamination Core: CRGO lamination core are used for minimum power losses
  • Paints: epoxy paint which is resistant to acidic environment of plating process and provide insulation from rust
  • Meter: DC meters with AE/RISHAB make
  • Constant voltage controller (Cvc): CVC electronic attachment with rectifier equipment for maintaining output voltage or current
  • Servicing: As early as possible

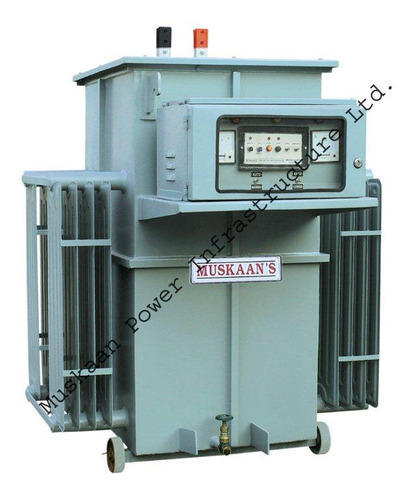

Product Image


h
